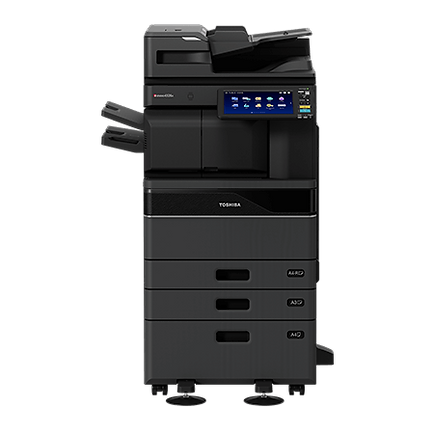

e-STUDIO2525AC

Make hybrid working easier than ever with this compact color MFP. Part of our most advanced MFP series, the e-STUDIO2525AC takes up minimal space at the office and allows teams to simply and safely print from anywhere through cloud features.

Print faster with speeds up to 25 pages per minute
Print, copy, scan, and fax in a small footprint
Free your team to work remotely with cloud features
Safeguard information with advanced security

Engine Speed

25 ppm

Resolution

600 x 600 dpi

Print Type

Color

Paper Capacity

1200

5200

Scan Speed

Up to 240 IPM Duplex / 120 IPM Simplex (Monochrome or Color)

Time to first print

5.9 Sec. B/W

7.8 Sec. Color

Request Quote

Request Product Quote

Schedule Assessment

Schedule Fleet Assessment

Main Specifications

General type

A3 Color MFP (up to 12" x 18")

Engine Speed

25 ppm

Display

10.1” Color WSVGA Touch Screen Tilting Display

Warm-up time

From Powering On: Approx. 20 Seconds; From Sleep & Lower Power: Less than 12 Seconds

Reproduction Ratio

25% to 400%

Max Duty Cycle

Max. 75K Month (Color: 100%) - Max. 150K Month (Monochrome: 100%)

Toner Yield

CMY: 38K, K: 39.8K @ 5%

Processor

ARM Cortex-A53 / 1.6GHz

Print Resolution

600 x 600 dpi, 1,200 x 1,200 dpi or 3,600 x 1,200 dpi (BW/with Smoothing) PS3 Only

Operating Systems

Windows® 8.1, 10, 11, Windows Server® 2012/R2, Windows Server® 2016/19/22, Macintosh® (Mac OS x 10.10-15), Unix®, Linux®

Account Control

Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/ Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function

Network Protocols

TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments

Wireless Device

AirPrint™, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play)

Wireless Device

TopAccess

Input capacity

Paper capacity

Standard 1,200 Sheets/Max. 5,200 Sheets

Standard: 550 Sheets x 2-16 lb Bond-110 lb Cover, Stack Feed Bypass: 100 Sheets-14 lb Bond-110 lb Cover, Opt. 550-Sheet Paper Feed Pedestal-16 lb Bond-110 lb Cover, Opt. 550-Sheet Drawer for PFP -16 lb Bond-110 lb Cover, Opt. Envelope Cassette for PFP-16 lb Bond-140 lb Index, Opt. 2,000-Sheet Tandem LCF (Pedestal Type), 17-28 lb Bond, Opt. 2,000-Sheet External LCF-LT-16 lb Bond-110 lb Cover

Original Feed

300-Sheet DSDF or DSDF with Double-Feed Detection or 100-Sheet RADF

Paper Feed Sizes

Duplex

Standard Automatic Duplex Unit (16 lb Bond-140 lb Index)

Drawer 1: 550 Sheets-ST-R to LD, Drawer 2: 550 Sheets-ST-R to 12” x 18”, Stack Feed Bypass: 100 Sheets-3.9” x 5.8” x 12” x 18”, 12” x 47” Banner, Opt. 550-Sheet Paper Feed Pedestal-ST-R to 12” x 18”, Opt. 550-Sheet Drawer for PFP-ST-R to 12” x 18”, Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG. Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only, Opt. 2,000-Sheet External LCF-LT Only

Output capacity

Max of 4000 Sheets (LT)

Digital Copy Features

Auto Magnification, Auto Paper Select, Auto Start,
Auto Drawer Change, Interrupt Copy, Positive /Negative
Reverse, Mirror Image, Rotate Copy, Border Erase,
Combine Copy, Split Copy, Electronic Sort,Margin Shift,

Page Number, Form Overlay, XY Zoom, Prevent Bleed
Through, Text Stamp, Bates Stamp, Blank Page Skip,
Specified Color Removal, Proof Copy, Preview, ID Card Copy

Zoom Range

25% to 400%

Preset Magnification Ratios

Full Size, 4 Reduction, 4 Enlargement

Max Original Size

Up to 11"x17"

Continuous Copy

1-9,999

File Formats

Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, PDF/A, Searchable PDF, XPS-Multi/Single Page, DOCX, XLSX, PPTX; Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, PDF/A, Slim PDF, Searchable PDF, XPS-Multi/Single Page, DOCX, XLSX, PPTX Scan to Folder (SMB), Scan to Email, Scan to FTP,
Scan to FTP over SSL, Scan to USB, WSD Scan, TWAIN Scan, DSM
